Reducer

Planetary Reducer PXW 60 For Nema24 Servo Motor
PRODUCT DESCRIPTION

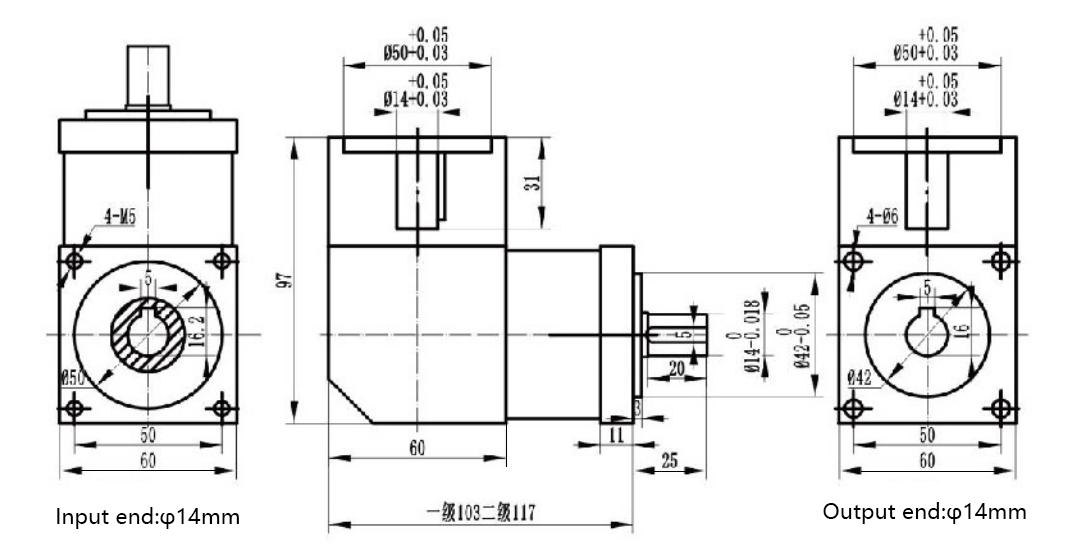

PXW60 Servo right Angle series

Input shaft diameter:14mm Output shaft diameter:14mm

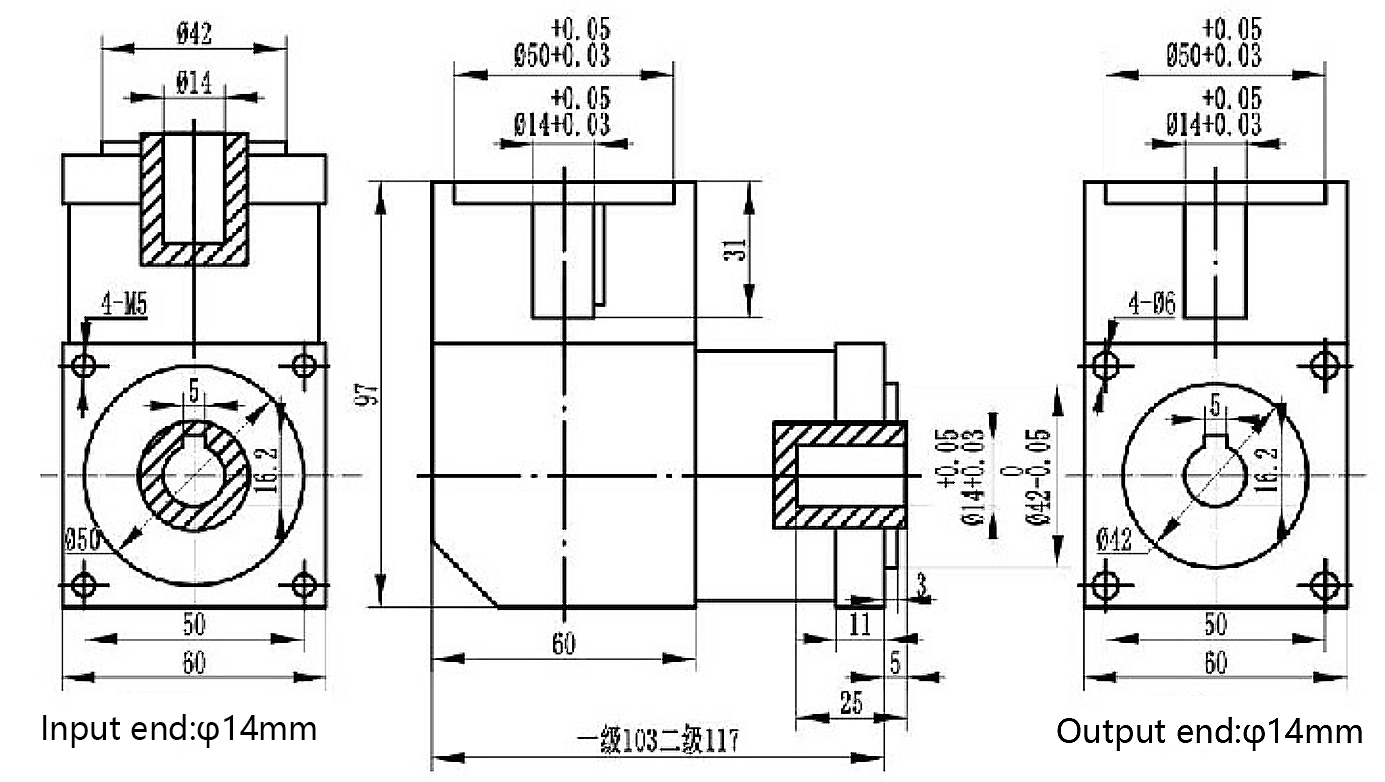

PX60 Servo input and output are the same series

Input shaft diameter:14mm Output shaft diameter:14mm
Speed series
First level
Second level
Third level
Deceleration ratio
4/5/6/10
16/20/24/30/36/50/60
64/96/100/120/144/150/180/216
Body length
103
117
131
Rated load
15
30
40
Maximum load
25
40
50
Efficiency
90
85
80
Return clearance
≤25
≤50
≤75
Rated input speed
≤3000
≤3000
≤3000
Protection class
65
65
65
Weight
1.5
1.75
2
Noise
≤60
≤65
≤75
Life span
≈20000
≈20000
≈20000
Noise
Grease
Grease
Grease
Installation mode
Flange
Flange
Flange
